AC to DC Converter: The Backbone of Power Electronics

Alternating Current vs Direct Current

Alternating current is a form of electrical energy where the electric current and voltage oscillate in a sinusoidal or sometimes non-sinusoidal waveform. This is different from DC, where the electrical energy flows in one direction.

George Westinghouse was an early adopter and proponent of alternating current. He championed the concept of using AC electricity over DC because AC voltages can be transformed easily, making it more adaptable for long-distance transmission.

The Heart of Conversion: The Transformer

The process of converting AC to DC often begins with a transformer. Transformers are critical in modifying the voltage levels. For instance, a 12V AC supply can be stepped down to a 5V AC supply using a transformer.

The Role of a Rectifier

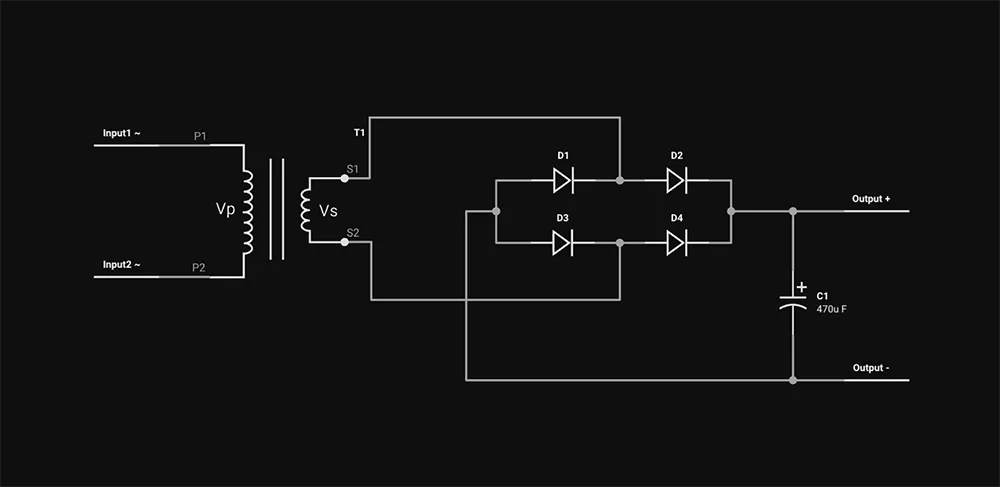

Once the transformer adjusts the AC voltage, a rectifier takes over to convert this AC into DC. The most commonly used type of rectifier is the bridge rectifier. This device uses four or more diodes arranged in a specific manner to ensure that the electrical energy flows in one direction, converting the alternating current into a form of direct current.

How Sine Wave Converts into Square Wave

The sinusoidal waveform of alternating current when passed through a bridge rectifier tends to get converted into a square wave. This square wave still contains AC components that are not suitable for DC electronic devices.

Power Inverter and its Role

Interestingly, a power inverter can do the reverse of a rectifier. It takes DC and changes it back to AC. You might wonder why convert it back to AC? Well, some applications require the DC to be converted back to alternating current, such as in the case of a DC to AC power inverter.

Components for Smoothing: Capacitor

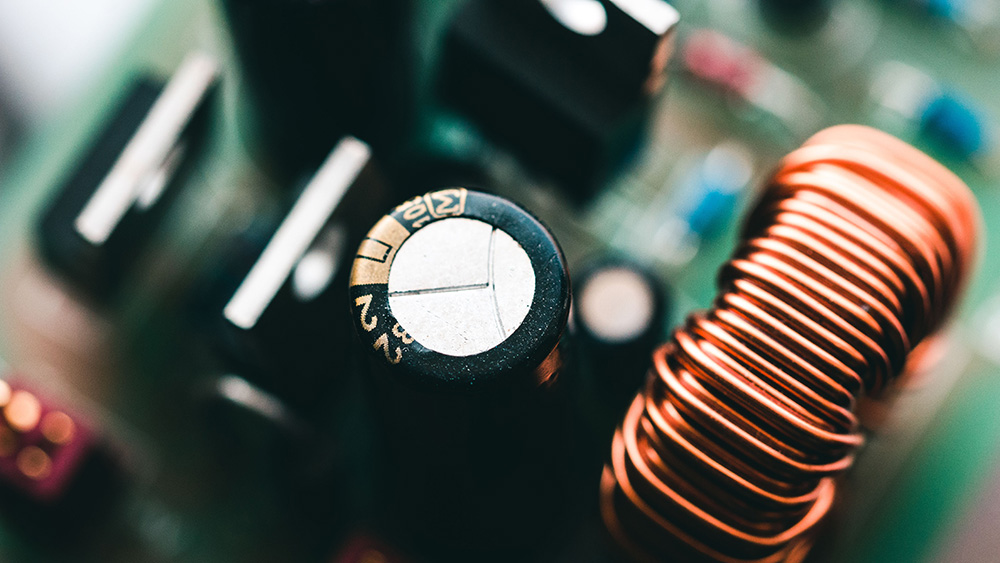

The square wave output from the bridge rectifier is still not a pure DC. This is where a capacitor comes into play. By using a capacitor in the circuit, the square wave can be smoothed out into a voltage level that more closely resembles a DC signal.

DisplayStyle and Waveforms

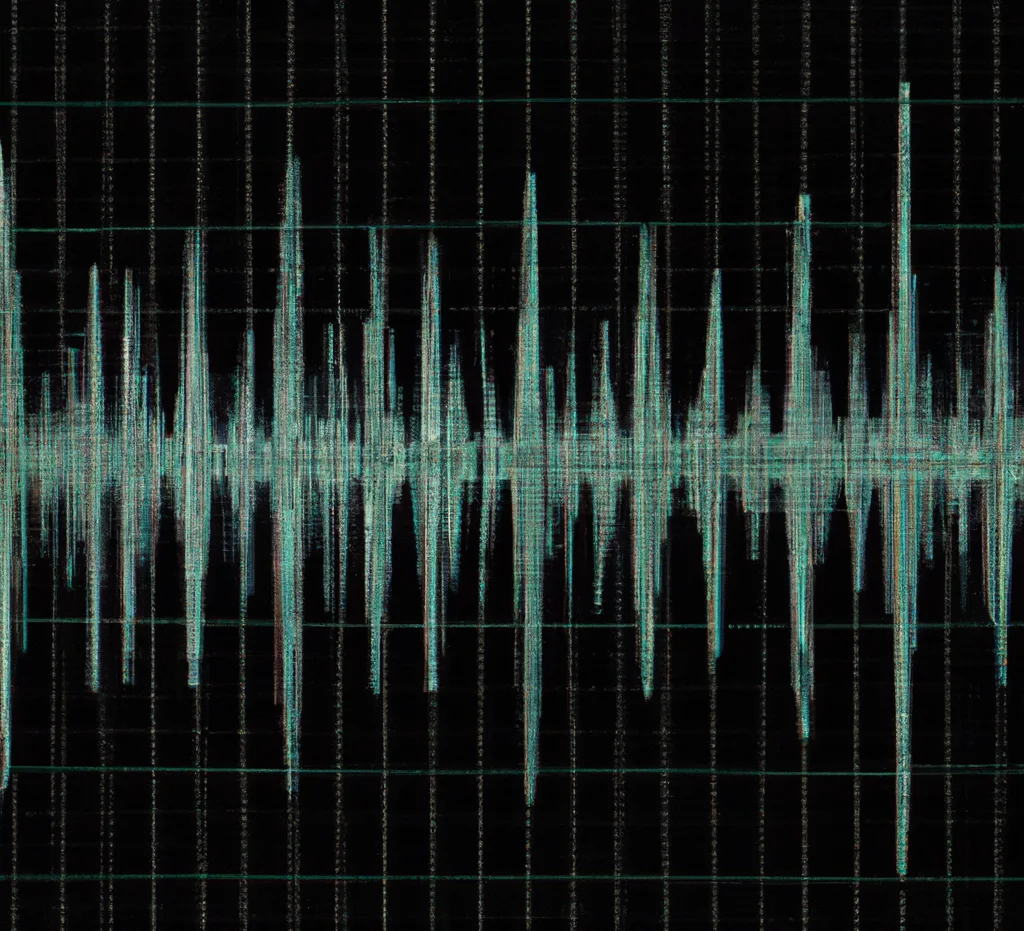

In power electronics, `displaystyle` is often used to represent complex waveforms mathematically. This is crucial for engineers who are designing or understanding a circuit for an AC to DC converter. Understanding the waveform, whether it's a sine wave, square wave, or any other form, is crucial for the efficient conversion of electrical energy.

From Hertz to Voltage: Units Matter

When dealing with AC and DC, the units like hertz (Hz) and volt (V) become very important. For instance, in the United States, the standard power supply frequency is 60 Hz with a voltage of around 110-120V. A power converter will take this and convert it to a 12V or 5V DC power supply, depending on the requirement.

Specialized Converters: Voltage Regulator and Power Supply

In advanced circuits, after the action of a rectifier and capacitor, a voltage regulator may be used to ensure that the output DC voltage remains constant regardless of fluctuations in the input AC voltage. This is particularly useful for sensitive electronic devices that require a stable power supply.

AC DC Converter as an Adapter

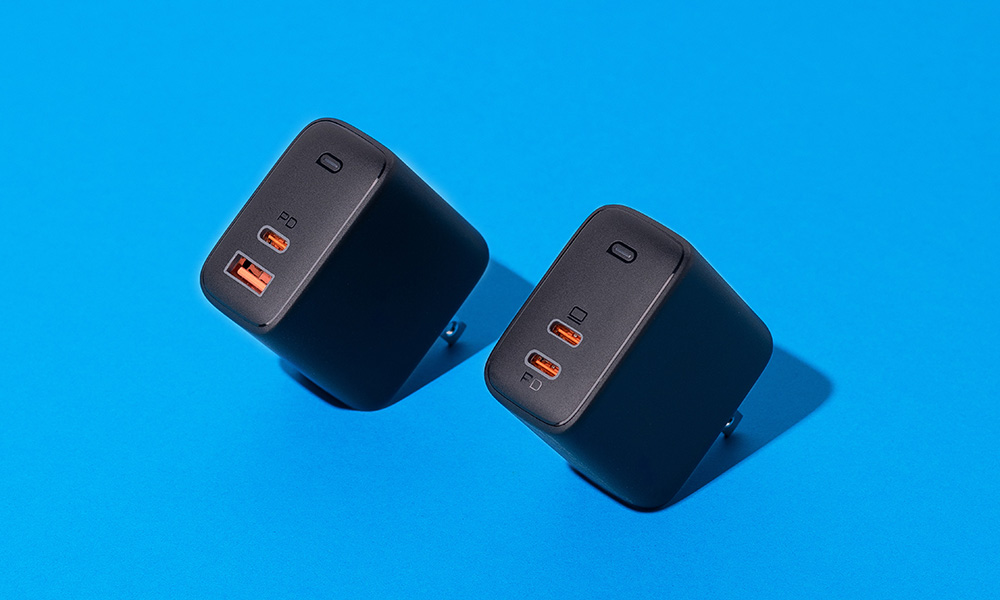

Many of the chargers for our electronic devices like laptops and smartphones are essentially AC DC converters, acting as an adapter between the AC supply and the DC power supply needed by the electronic device. Some specialized converters even offer the function of a DC to DC converter, which can adjust DC voltage levels just like a transformer does for AC.

The Commutator: An Older Method

Before the widespread use of semiconductors, a commutator was often used to convert AC to DC. The commutator reverses the direction of electric current twice during each cycle, mimicking a sort of mechanical rectifier. However, in modern power electronics, solid-state devices like diodes have largely replaced commutators.

Conclusion

The AC to DC converter plays a vital role in our lives, ensuring our electronic devices get the right kind of power. From the use of transformers and bridge rectifiers to the role of capacitors and voltage regulators, the intricacies are many. As we continue to rely on an increasing array of electronic components, the need for efficient and reliable converters will only grow. Understanding how they function is not just for electrical engineers but anyone who wants to grasp how our modern world is powered.

‍
