Introducing the AI Design Review Tab
Share
BuildWithFlux
If this sounds interesting to you and you'd like to request a demo or learn more, please contact sales.
At Flux, we believe that AI should be more than a tool—it should be a design partner that helps you navigate these challenges and produce better work faster. That’s why we’ve created AI-powered design reviews. It goes beyond traditional ERCs by understanding your project’s context and constraints, helping you catch not only blatant errors but also potential optimizations and nuanced issues. It’s like having an experienced engineer available at all times to review your work and offer guidance.
Electrical Rule Checks (ERCs) are a standard part of PCB design, flagging rule violations such as unconnected pins or electrical loops. While these checks are necessary, they often lack the depth needed to fully understand the broader context of your design. This can leave critical gaps in your review process and result in missed opportunities for optimization or overlooked issues that only surface later.
For experienced engineers, thorough reviews are time-intensive, so they’re often done less frequently. In a small team or startup, you might not always know what to look for, which can lead to overlooked issues Flux’s AI-powered design reviews change that by transforming a traditionally reactive process into a proactive one.
What sets Flux AI design reviews apart is its ability to leverage your project’s context and detailed data—such as part datasheets, application notes, and design constraints—to provide deep, actionable insights that mimic a human expert’s guidance. Unlike simple DRCs, which are limited to binary pass/fail results, Copilot’s checks are context-aware and interpretive. This means you’re not just checking if your design meets basic criteria; you’re getting insights into whether it aligns with best practices, meets safety margins, and is optimized for production.
We also understand that user trust in AI-driven engineering tools is paramount. That’s why we developed these checks to blend deterministic algorithms with AI, striking a balance that ensures accuracy, reliability, and confidence.
We’re launching with targeted reviews that cover essential areas and will be expanding them based on user feedback.
Included in the Beta Release: The first of many checks you can expect
The system always explains why an issue was flagged. This combination of deterministic algorithms and AI ensures that checks are reliable, comprehensive, and adaptable to your specific project.
Flux’s AI design review panel is designed to be intuitive and flexible:
Flux Copilot doesn’t just check for pass/fail criteria; it interprets the constraints of your project and cross-references them with your design. This means that beyond simple ERCs, the AI can flag issues that might otherwise go unnoticed.

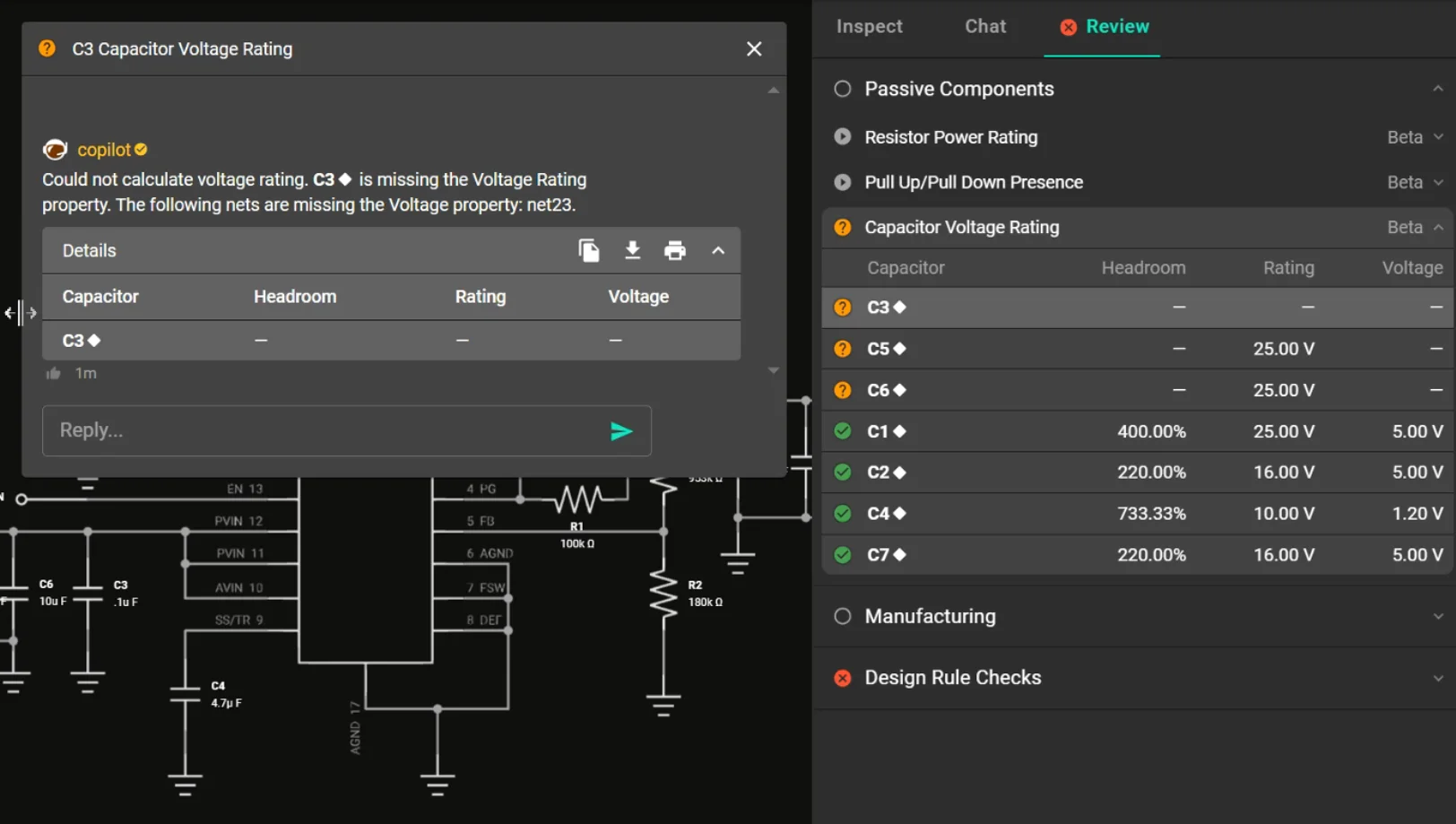

Imagine you’re working on a PCB and running a passive component check. Copilot flags a warning for capacitor C3, stating, “Ceramic Capacitor C3 has a voltage rating of 16V, which is less than the required 50V” . This isn’t just a binary check—it’s context-aware. It understands your circuit’s requirements and knows that a safe voltage margin should exceed 150% for reliable operation.

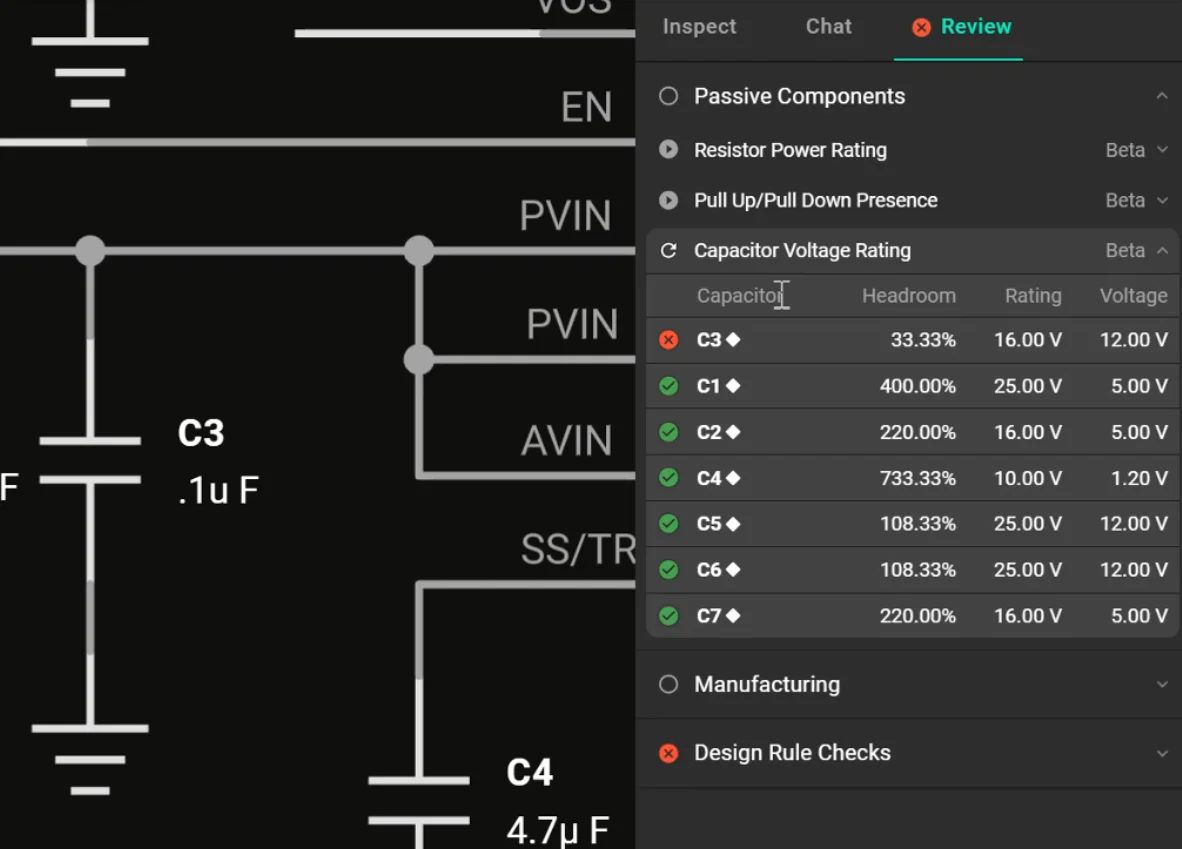

In the review panel, you see the flagged issue highlighted on your PCB layout, the voltage margin percentage shown, and an explanation of why it matters. This makes it easy to interpret the results and take corrective action quickly, ensuring your design meets reliability standards.
These initial checks are only the start. At Flux, we’re committed to continuously evolving our platform based on your feedback. Have specific checks or features you’d like to see added? Share your suggestions in our feedback portal. Your insights are invaluable in making Flux an even better design partner.
With AI as your partner, design reviews are more thorough and run more frequently, resulting in safer designs. Flux is here to help you focus on what you do best: creating innovative, reliable hardware.
