In system design, the functional block diagram (FBD) is an indispensable tool for organizing the integration of various components within complex systems. But what are functional block diagrams, and why are they so important? This blog will explore FBDs, their pivotal role in system design, the symbiotic relationship with ladder logic, structured text, and the broader realm of PLC programming.

If this sounds interesting to you and you'd like to request a demo or learn more, please contact sales.

Contact Sales

What is Meant by Functional Diagram?

A functional block diagram is a schematic representation that delineates the principal functions of a system and the flow of data between them. It serves as a cornerstone in system engineering, simplifying the visualization of complex interactions within systems. FBDs are characterized by their use of labeled blocks connected by lines indicating dataflow, making them an intuitive means for depicting system operations.

The advantages of function block diagrams are that they’re very easy to follow and understand. They are generally laid out to mimic a specific process thus making it easy to understand for those who don’t have a background in plc programming.

In essence, an FBD breaks down large systems into manageable, functionally discrete blocks, facilitating a modular approach to system design. This modularity is crucial, allowing designers to focus on individual functions without being overwhelmed by the system's overall complexity.

What Are the Three Main Components of a Functional Diagram?

The potency of a functional block diagram lies in its simplicity and clarity, achieved through three fundamental components:

  1. Function Blocks: These are the primary elements representing specific functions within the system, such as calculations, logical operations, or data processing tasks. Each block encapsulates a distinct functionality, abstracting the underlying complexity.
  2. Input and Output Connections: Function blocks are interconnected through input and output lines, symbolizing the flow of data and control signals between blocks. These connections illustrate how the output from one block serves as input to another, revealing the system's dataflow dynamics.
  3. Labels and Annotations: Descriptive labels and annotations accompany function blocks and connections, providing essential details about the functions performed and the nature of the data being transferred. This textual information enriches the diagram, making it a more informative and effective communication tool.

The Symbiosis with Ladder Logic and Structured Text

FBDs do not exist in isolation; they are part of a larger ecosystem of programming languages and representation techniques used in the programming of programmable logic controllers (PLCs). Ladder logic, with its origins in electrical wiring diagrams, offers a graphical method that is intuitive for those with a background in electrical engineering. It depicts control logic in a format resembling a ladder, with rungs representing logical operations.

Structured text, another facet of PLC programming, is a high-level textual programming language that resembles traditional computer programming languages. It allows for complex instructions and algorithms to be implemented in a more familiar syntactic form.

FBDs complement these programming paradigms by providing a visual overview of system logic and dataflow, serving as a bridge between the conceptual design and the detailed implementation in ladder logic or structured text. This synergy enhances the understandability, development efficiency, and maintainability of PLC-based systems.

FBDs in the Context of Programmable Logic Controllers

PLCs stand at the forefront of industrial automation, controlling machinery and processes with precision and reliability. In the domain of PLC programming, FBDs play a pivotal role, offering a graphical method for designing and implementing control logic.

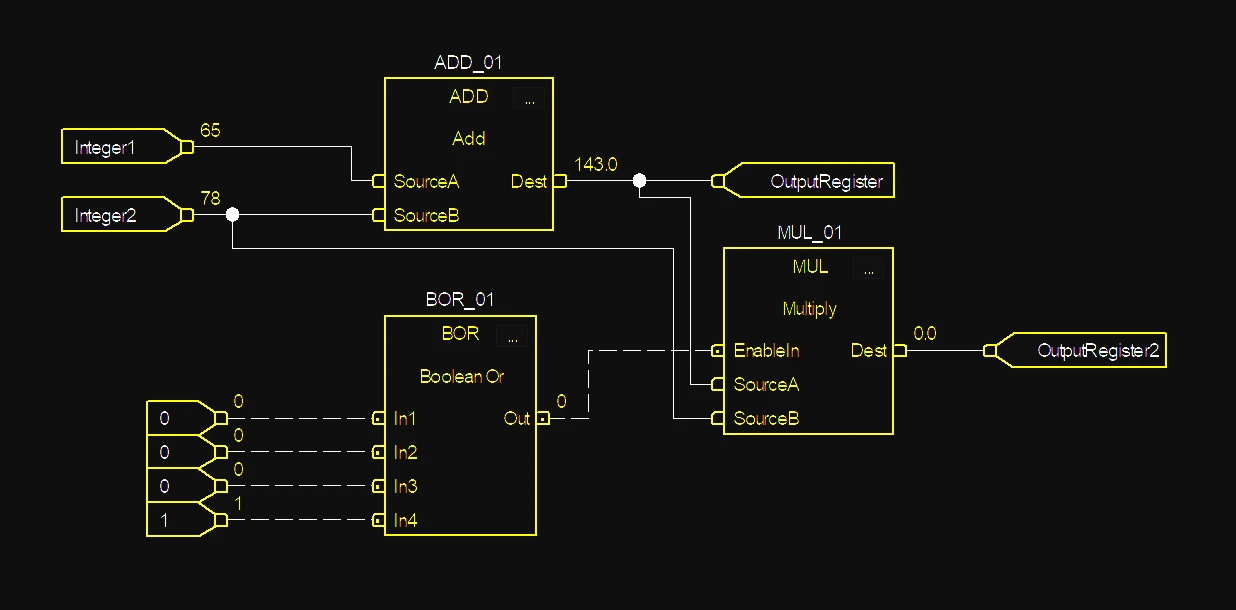

An example of programmable logic controller PLC functional block diagram FBDs

FBDs align perfectly with the operational paradigm of PLCs, which are inherently designed to execute logic operations based on real-time data inputs. The visual nature of FBDs facilitates the rapid development and troubleshooting of PLC programs, enabling engineers to map out complex control strategies in a more intuitive and less error-prone manner.

Moreover, the adoption of FBDs in PLC programming underscores the importance of a clear and structured approach to system design. By visualizing the functional architecture of a system, engineers can ensure that all components interact harmoniously, leading to more robust and reliable PLC-based control systems.

The Evolution of FBDs and Future Directions

As system complexity continues to escalate, the role of functional block diagrams in system design is not only preserved but also expanding. The integration of FBDs with advanced simulation tools and software development environments is enhancing their utility, allowing for more dynamic and interactive system modeling.

The future of FBDs is likely to witness further integration with artificial intelligence and machine learning technologies, enabling smarter and more adaptive systems. As these advanced systems become more prevalent, the clarity and efficiency offered by FBDs will become even more critical in navigating the complexity of modern system design.

Conclusion

Functional block diagrams are a testament to the power of visual representation in the realm of system design. By distilling complex system functionalities into comprehensible blocks and illustrating the dataflow dynamics, FBDs provide a foundation for designing, implementing, and maintaining sophisticated systems. Their symbiotic relationship with ladder logic, structured text, and PLC programming languages enhances their utility, making them an indispensable tool in the engineer's toolkit.
