Intro to STM32 Microcontrollers
STM32 is a family of microcontrollers from STMicroelectronics, based on ARM Cortex-M processors. Known for their versatility, these microcontrollers power everything from wearables to industrial machines. With multiple series tailored to different needs—performance, power consumption, or wireless communication—STM32 offers a perfect match for any project.
If you’re a beginner—whether a student, hobbyist, or engineer—this guide will help you understand the STM32 ecosystem, its series, and the tools needed to kickstart your journey.
Common Microcontroller Architecture

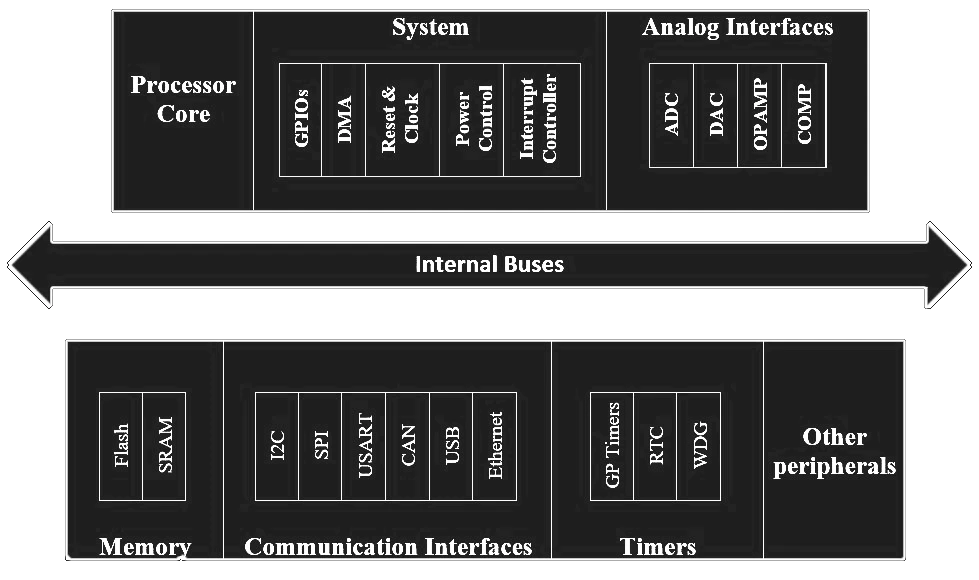

A typical microcontroller includes a processor, memory and Input/Output (I/O) peripherals on a single chip. Its components may be extended to include: Digital I/O, Analog I/O, Timers, Communication interfaces, Watchdog (a timer that is responsible for the detection of timed out or locked instruction).
A processor is a little chip present in the device that has the role of arranging the instructions and order the outputs. The manufacturer defines the integrated peripherals and the hardware capabilities.
STM32 Microcontroller Families Overview
STM32 microcontrollers are divided into several groups based on their target applications. Below is a quick overview to help you choose the right MCU series:
- High Performance (e.g., STM32F7, STM32H7): Optimized for processing-intensive tasks, such as graphics or audio processing.
- Mainstream (e.g., STM32F1, STM32G4): Ideal for general-purpose applications, balancing cost and performance.
- Ultra Low Power (e.g., STM32L4, STM32L5): Designed for battery-operated devices, focusing on efficiency.
- Wireless (e.g., STM32WB): Includes built-in Bluetooth and IEEE 802.15.4 wireless communication.
Which STM32 MCU to Select?
- STM32F0 (Mainstream)
Based on the Arm Cortex-M0 processor, running up to 48 MHz. Optimized for low cost and designed to compete with 8-bit and 16-bit platforms. - STM32F1 (Mainstream)
Based on the Arm Cortex-M3 processor, with a maximum clock speed of 72 MHz. A general-purpose microcontroller, widely popular for hobby projects. - STM32F2 (High Performance)
Based on the Arm Cortex-M3 processor, with a clock speed of up to 120 MHz. Offers optimized performance for more demanding applications. - STM32F3 (Mainstream)
Based on the Arm Cortex-M4 processor, featuring FPU and DSP instructions, with a speed of up to 72 MHz. Ideal for mixed-signal applications. - STM32F4 (High Performance)
Based on the Arm Cortex-M4 processor with FPU and DSP instructions, running at up to 180 MHz. Known for high performance, frequently used in multimedia and industrial projects. - STM32F7 (High Performance)
Based on the Arm Cortex-M7 processor with FPU and DSP instructions, running at up to 216 MHz. Pin-to-pin compatible with the STM32F4 series, making it easy to upgrade designs.
{{insert-project-1-here}}
- STM32G0 (Mainstream)
Based on the Arm Cortex-M0+ processor, with a speed of up to 64 MHz. Optimized for efficiency, competing with 8-bit and 16-bit microcontrollers. - STM32G4 (Mainstream)
Based on the Arm Cortex-M4 processor with FPU and DSP instructions, running at up to 170 MHz. This series is the successor of the STM32F3 and is ideal for mixed-signal applications. - STM32H7 (High Performance)
Based on the Arm Cortex-M7 processor, running at up to 480 MHz, with FPU and DSP instructions. Some models feature a second Arm Cortex-M4 co-processor, making them ideal for industrial automation and complex processing tasks. - STM32L0 (Ultra Low Power)
Based on the Arm Cortex-M0+ processor, running at up to 32 MHz. Optimized for low-power applications, such as wearables and battery-operated devices. - STM32L1 (Ultra Low Power)
Based on the Arm Cortex-M3 processor, with a speed of up to 32 MHz. Tailored for applications requiring both low power consumption and performance. - STM32L4 (Ultra Low Power)
Based on the Arm Cortex-M4 processor with FPU and DSP instructions, running at up to 80 MHz. Designed for ultra-low power use cases with better efficiency. - STM32L4+ (Ultra Low Power)
Based on the Arm Cortex-M4 processor with FPU and DSP instructions, with a clock speed of up to 120 MHz. Offers higher performance than the STM32L4 series while maintaining low power consumption. - STM32L5 (Ultra Low Power)
Based on the Arm Cortex-M33 processor, running at up to 110 MHz. Provides enhanced security features and is optimized for IoT and battery-powered applications. - STM32WB (Wireless)
Based on the Arm Cortex-M4 processor with FPU and DSP instructions, running at up to 64 MHz, alongside a second Arm Cortex-M0+ processor acting as a network processor. Supports Bluetooth 5 and IEEE 802.15.4 standards, making it ideal for wireless IoT solutions.
How to use STM32 MCU?
There are two ways to use an STM32 MCU which are:
{{insert-project-2-here}}
Essential STM32 Features for Development and Debugging
STM32 microcontrollers come equipped with several critical features that make development smoother, especially for embedded applications. Here are a few that stand out:
- USB OTG (On-The-Go)
Many STM32 MCUs, especially in the STM32F4 and STM32H7 series, offer USB OTG functionality. This feature allows the microcontroller to act both as a USB host and a device, enabling easy communication with peripherals like flash drives, keyboards, or sensors. USB OTG makes STM32 ideal for applications like portable devices or data loggers. - SWD (Serial Wire Debug)
For debugging and programming, STM32 microcontrollers support SWD. This is a streamlined, two-wire alternative to traditional JTAG interfaces, making it more efficient while reducing pin usage. SWD allows developers to debug their code in real-time and monitor performance directly on the microcontroller. - UART (Universal Asynchronous Receiver-Transmitter)
UART communication is available across almost all STM32 MCUs, allowing serial communication between the microcontroller and external devices like sensors, computers, or displays. This feature is particularly useful for applications requiring simple, low-overhead data exchange, such as data logging or wireless modules. - Debugging with STM32
STM32 provides robust debugging options, supporting tools like ST-Link, which enables seamless flashing and debugging through SWD. Additionally, most development boards come with built-in debug interfaces, ensuring developers can quickly identify issues and optimize performance.
{{insert-project-3-here}}
Choosing the Perfect STM32 Development Board for Your Application
To get started with STM32, you’ll need a development board. Here are some of the top picks, whether you’re on a budget or seeking advanced features:
- Perfect for beginners, featuring built-in ST-Link debugger.
- NUCLEO-F103RB – STM32F103 MCU with 128kB FLASH memory.
- Include additional sensors and displays for prototyping.
- STM32F407G-DISC1 – Ideal for multimedia projects with STM32F4.
- Affordable, compact, and widely available on platforms like AliExpress.
- Example: Black Pill with STM32F103C8T6 – Perfect for hobbyists looking for a cost-effective solution.
STM32 Software Tools and IDEs
Once you’ve chosen a development board, the next step is setting up the software. Below are some of the best free IDEs and tools to get started with STM32 programming:
- STM32CubeIDE:
Official IDE by STMicroelectronics. Cross-platform and integrates seamlessly with STM32CubeMX for configuration. - PlatformIO:
A versatile development environment that supports multiple platforms, including STM32. - STM32duino:
For those familiar with Arduino, this environment brings the Arduino experience to STM32 boards. - Keil MDK:
Free for STM32G0, F0, and L0 series; an excellent option for smaller projects on Windows.
For IoT projects, consider Arm Mbed, a platform that supports cloud-based development and is optimized for low-power devices.
How to Get Started: A Step-by-Step Workflow
1. Setting Up Your Development Board
- Connect the board to your computer via USB.
- Install the STM32CubeIDE or your preferred IDE.
- Verify the connection using the built-in ST-Link debugger.
2. Configuring Your Project with STM32CubeMX
STM32CubeMX simplifies the configuration process by generating initialization code. You can:
- Select your microcontroller.
- Configure pins, clocks, and peripherals through a graphical interface.
- Generate C code, ready to use in STM32CubeIDE.
3. Write and Code Your First STM32 Program
Create a basic “blinky” program to blink an LED. This is a great way to ensure everything is set up correctly.
#include <stm32f1xx.h>
int main(void) {
HAL_Init(); // Initialize the HAL Library
__HAL_RCC_GPIOC_CLK_ENABLE(); // Enable GPIO Clock
GPIO_InitTypeDef GPIO_InitStruct = {0};
GPIO_InitStruct.Pin = GPIO_PIN_13;
GPIO_InitStruct.Mode = GPIO_MODE_OUTPUT_PP;
GPIO_InitStruct.Pull = GPIO_NOPULL;
GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_LOW;
HAL_GPIO_Init(GPIOC, &GPIO_InitStruct);
while (1) {
HAL_GPIO_TogglePin(GPIOC, GPIO_PIN_13);
HAL_Delay(500);
}
}
Key Specifications and STM32 Pricing Overview
| Series | Core | Applications | Price Range |
| :=== | :=== | :== | :== |
| STM32F1 | Cortex-M3 | General purpose, hobby projects | $2 – $10 |
| STM32F4 | Cortex-M4 | High-performance multimedia | $5 – $20 |
| STM32H7 | Cortex-M7 | Industrial, IoT gateways | $8 – $30 |
| STM32WB | Cortex-M4 + M0+| Wireless communication | $10 – $25 |
Common Challenges and How to Overcome Them
- Problem: "The IDE doesn't recognize my board."
Solution: Ensure drivers for the ST-Link debugger are installed. Check connections and firmware. - Problem: "I don't know which STM32 series to use."
Solution: Start with STM32F1 or F4 series if you're a beginner. These series have abundant resources online.
{{insert-mark-video}}
Where to Buy STM32 MCUs and Development Boards
You can find STM32 MCUs and development boards from trusted vendors, such as:
- Official STMicroelectronics website
- Mouser Electronics and Digi-Key
- AliExpress and Amazon for budget boards like the Black Pill
Why Choose STM32?
STM32 microcontrollers are an excellent choice for both beginners and advanced developers. They offer a wide range of features, low power consumption, and support for IoT, wireless communication, and industrial automation. With STM32Cube tools and free IDEs, you can build your projects faster and more efficiently.
Whether you’re working on a simple blinky LED project or a complex IoT solution, STM32 has the right series to fit your needs. Get your development board, set up your environment, and start building today!
FAQ About STM32 MCUs
Q: What is the best STM32 series for beginners?
A: The STM32F1 and STM32F4 series are great starting points, as they are well-documented and widely supported.
Q: Is STM32CubeIDE free?
A: Yes, STM32CubeIDE is free and available for Windows, macOS, and Linux.
Q: How much does an STM32 microcontroller cost?
A: Prices vary by series, with the STM32F1 starting around $2 and high-end STM32H7 costing up to $30.
Q: Is STM32 better than Arduino?
A: While Arduino is simpler and more beginner-friendly, STM32 offers more power, flexibility, and scalability. STM32 microcontrollers provide better performance with faster processing speeds, more peripherals, and lower power consumption, making them ideal for more advanced or professional projects. On the other hand, Arduino is great for quick prototyping and those new to microcontrollers.
Q: What are STM32 microcontrollers used for?
A: STM32 MCUs are used in a wide range of applications, including IoT devices, automotive systems, industrial automation, wearables, and smart home products. Their versatility makes them suitable for both high-performance tasks (like multimedia processing) and low-power applications (like battery-operated devices).
