RS232 Architecture and Components
Devices in RS232 Communication
- Data Terminal Equipment (DTE) - DTE devices, such as computers, terminals, or network equipment, serve as the starting or ending point in RS232 communication. They are configured to transmit and receive data in accordance with the RS232 standard.
- Data Circuit-Terminating Equipment (DCE)
- Modems and Their Role - In RS232 communication, modems are typical DCE devices. They modulate digital data from a DTE into analog signals for transmission over telephone lines and demodulate incoming analog signals back into digital data.
- Handshaking Protocols (RTS/CTS, DSR/DTR) - Handshaking protocols like RTS/CTS and DSR/DTR are essential for synchronized communication between DTE and DCE. These protocols help in managing the readiness of devices for communication and the flow of data, thus preventing data loss or overflow.
Serial Ports
Physical Characteristics of Connector Types (DB9, DB25)
The RS232 standard utilizes two primary types of connectors: DB9 and DB25.
- The DB9 connector, a smaller 9-pin version, is prevalent in current applications.
- Conversely, the DB25 connector, featuring 25 pins, was more commonly used in earlier RS232 implementations.
Each connector type serves a specific application–modern, smaller applications or complex setups that need more control, respectively–with different pin configurations for transmitting data, receiving data, and various control signals.
Pinouts
Pinouts in RS232 connectors define the functionality of each pin. These configurations vary between DB9 and DB25 connectors. The standard pinouts include pins designated for Transmit Data (TXD), Receive Data (RXD), and several control signals like Request to Send (RTS) and Data Terminal Ready (DTR).

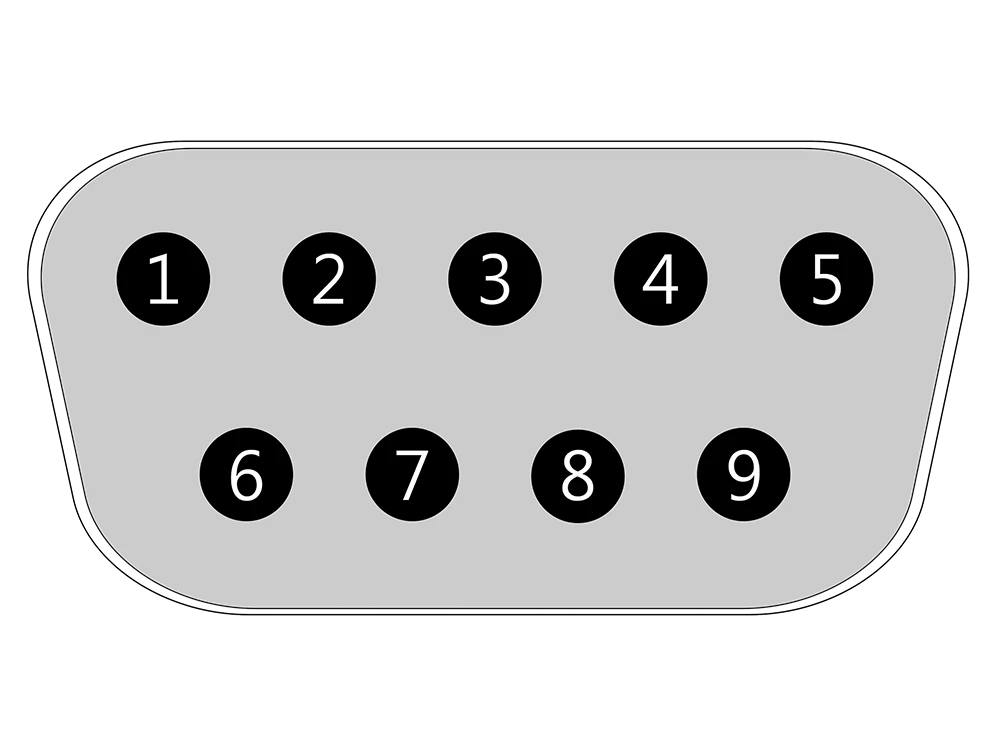

DB9 Pinout for RS232 Communication:
| DB9 Pin Number | Signal Name | Description |
| :=== | :=== | :=== |
| 1 | Protective Ground | Connects to the chassis ground |
| 2 | Transmit Data (TXD) | Data sent from DTE to DCE|
| 3 | Receive Data (RXD) | Data received by DTE from DCE |
| 4 | Data Terminal Ready (DTR) | DTE ready for data transmission |
| 5 | Signal Ground | Common ground for signals |
| 6 | Data Set Ready (DSR) | Indicates DCE is ready |
| 7 | Request to Send (RTS) | DTE requests permission to send |
| 8 | Clear to Send (CTS) | DCE grants permission to send |
Data Transmission
- Transmit Data (TXD) - The TXD pin is responsible for sending data from the DTE to the DCE. This data transmission occurs in a serial format, meaning data bits are sent sequentially over a single channel.
- Receive Data (RXD) - Conversely, the RXD pin facilitates the reception of data by the DTE from the DCE. Notably, as a bidirectional, half-duplex system, RS232 allows you to send and receive data on the respective lines, but not simultaneously.
- Control Signals (RTS, DTR) - RS232 also incorporates several control signals to manage the flow of data. The Request to Send (RTS) and Data Terminal Ready (DTR) signals are instrumental in initiating and maintaining the data communication process.
RS232 Communication Protocol
Serial Communication Basics
- Start and Stop Bits. A start bit indicates the beginning of a data packet, followed by the actual data bits. Optionally, a parity bit is included for error checking, and the packet ends with one or more stop bits. This ensures that both the sender and receiver are synchronized in data transmission.
- Parity Bits. Parity bits are used in RS232 to detect errors in data transmission. Depending on the configuration, the system can use no parity (no additional bit is added for error-checking), even parity (an extra bit is added to ensure the total number of bits (including the parity bit) is even), or odd parity (an extra bit is added to ensure the total number of bits (including the parity bit) is odd). This bit checks the number of 1's in the data bits and adjusts accordingly to match the selected parity mode, providing a basic form of error checking.
- Flow Control
- Hardware Flow Control:
- RTS/CTS Handshaking - In RTS/CTS (Request to Send/Clear to Send) handshaking, the RTS signal from the transmitting device alerts the receiver of impending data transmission. Upon readiness, the receiving device responds with the CTS signal, clearing the sender to proceed. This method effectively prevents data overflow by managing the pace of data transmission.
- DTR/DSR Handshaking - Similarly, DTR/DSR (Data Terminal Ready/Data Set Ready) handshaking works on the same principle. DTR is sent by the DTE to indicate its readiness, and DSR is the DCE's response, signifying its preparedness to communicate.
- Software Flow Control
- XON/XOFF Protocol - The XON/XOFF protocol is a software-based alternative to hardware flow control. It utilizes specific control characters (XON for start and XOFF for stop) to manage data transmission. This method is particularly useful in scenarios where the hardware lacks dedicated pins for flow control, the communication setup is straightforward, or compatibility with legacy systems is essential.
Applications and Relevance of RS232 Today
Despite the advent of more advanced communication protocols like USB and Ethernet, RS232 remains used due to its simplicity and wide compatibility. It's commonly used in industrial and scientific instruments, networking equipment, and legacy computer systems.
Troubleshooting Common RS232 Issues
Common issues in RS232 communication include misconfigured baud rates, incorrect parity settings, and improper cable connections. Troubleshooting these problems requires a systematic approach, often involving checking cable connections, verifying device configurations, and using diagnostic tools like serial port monitors.
